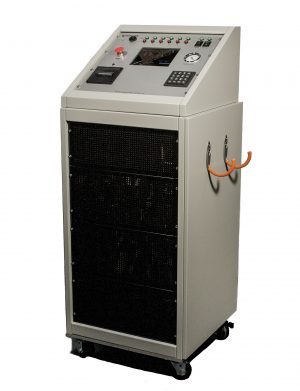

The HCS9306R Multizone Composite Repair System is a six zone system used to accomplish large area cures or thermally complex repair situations where multiple zones are required.

The repair system brings together six independent hot bonders into a convenient mobile rack, allowing easier management of complex composite repair scenarios. It is intended for use in shop repair and manufacturing applications.



  • Onboard Electric Vacuum pump with regulator.
  • Integral Ground Fault protection with resettable circuit breakers.
  • Built in Printer
  • 4ea auxiliary Network Ports for connecting additional bonders to the repair system
  • HEATCON Composite Systems standard thermocouple jacks, power, and vacuum connectors.
  • Modular Construction for ease of maintenance.
  • Zone operation based on proven Heatcon bonder technology, operator interface, and features.
  • Alternate Zone and Power configurations upon request.
  • Weight 200lbs (91kg)
  • Dimensions 56in x 23in x 26in
  • (1423mm x 584mm x 660mm)
  • Input Power: 380/415VAC, 3 phase, 50/60 Hz
  • Output Power: 220/240VAC, Single Phase, 50/60 Hz
  • 6 – 30 amp, 10 thermocouple independent Zones
  • Screen: High-Resolution, Software Dimmable, and Sunlight readable LCD Screen  (5.25in x 6.75in)
  • Zones can be run independently or grouped together to run a common profile. Maximum of 4 groups.
  • USB Interface for Data Export to USB Storage Device
